Model:
Jaguar
Release Date:
1993
Original Price:
$250
Processor:
"Tom" @ 26.591 MHz, "Jerry" @ 26.6 MHz, Motorola 68000 @ 13.295 MHz
Memory:
12 KB combined SRAM / 2 MB DRAM
This is one of many systems that I had lying around that I didn't
even know I had! I was cleaning up my computer 'dungeon' the other
day and came across this thing - no screws in the case, PCB
corroded, metal shielding rusted in spots and the plastic case was
covered in dirt. It looked like this thing had been outside in the
weather for months. Being the me that I am, I couldn't stand to see
a poor little computer system go unloved. I took into my shop,
cleaned it up and - to the best of my knowledge - it's working just
fine now. I say to the best of my knowledge because, according to
the schematic, the switching regulator isn't turned on unless a
cartridge is inserted. Apparently I have cartridges for every video
game system made except for this one!
Anyway, on a technical note, this is one of the last systems that
Atari released before their demise. With only less than 200,000
units having been sold, the Jaguar is considered a failure, although
there are still to this day homebrew games being created and sold
for this 64-bit cult classic.
In addition to the complicated and awkward controller with it's
proprietary 15-pin, high-density d-sub connector, there was also
a CD-ROM drive that plugged into the cartridge port and a JagTag -
a device to connect two Jaguars together - released. A voice modem
and a virtual reality headset never made it into production before
the systems demise in 1995.
>>

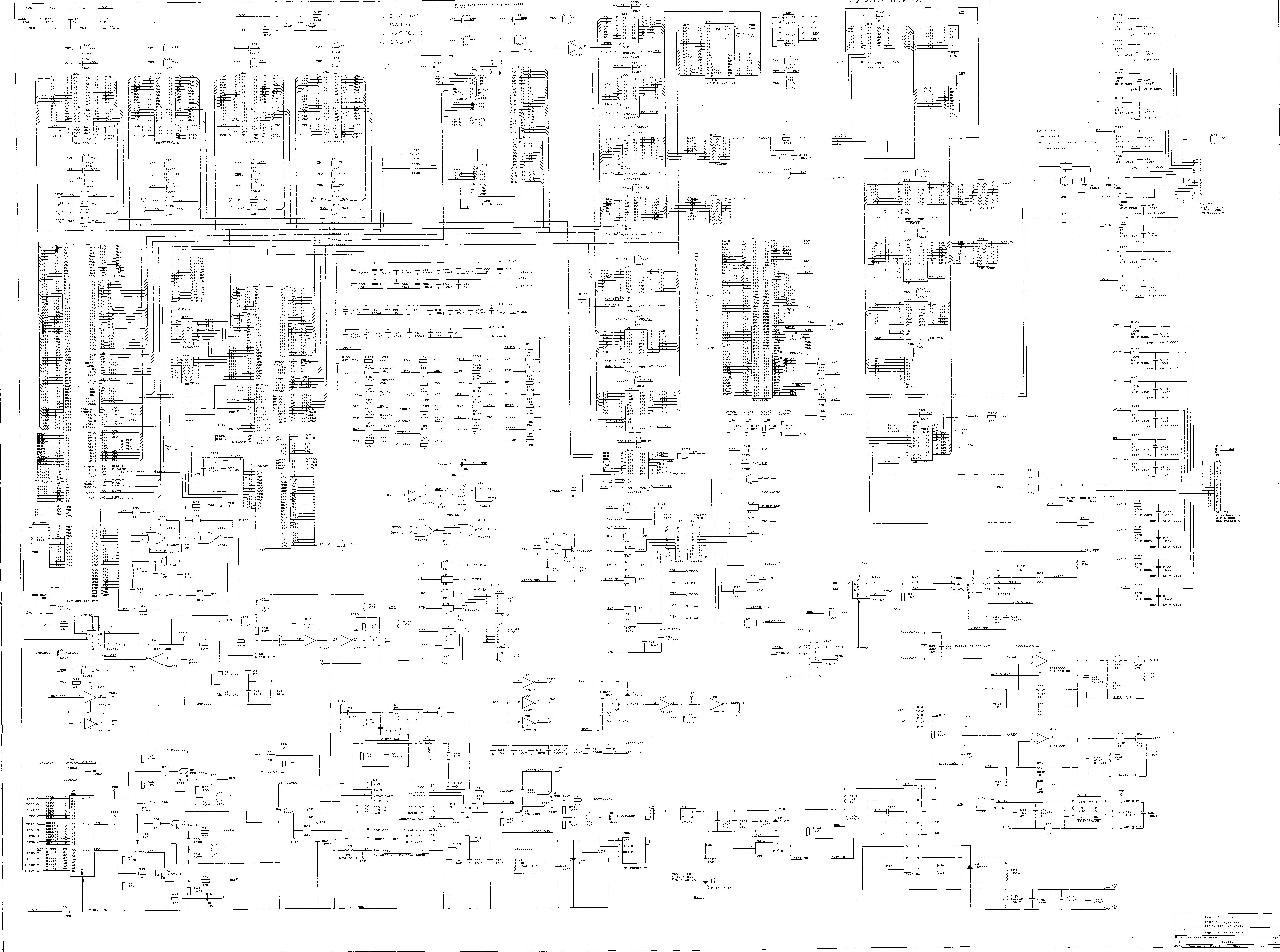

Click here to download the Schematic (856 kb)
>>
Click here to download a Complete Game List
>>
Click here to download a schematic to build your own controller (26 kb)
Pinouts:
| Video port |
 |
| Pin 01 = Audio Left | Pin 13 = Audio Right |
| Pin 02 = Audio GND | Pin 14 = Audio GND |
| Pin 03 = n/c | Pin 15 = n/c |
| Pin 04 = Chroma GND | Pin 16 = Red |
| Pin 05 = Blue | Pin 17 = Composite Sync |
| Pin 06 = Horizontal Sync | Pin 18 = n/c |
| Pin 07 = Green | Pin 19 = Luma GND |
| Pin 08 = Chroma | Pin 20 = Luma |
| Pin 09 = n/c | Pin 21 = n/c |
| Pin 10 = n/c | Pin 22 = Video GND |
| Pin 11 = +10vdc | Pin 23 = Composite Video |
| Pin 12 = n/c | Pin 24 = n/c |
Controller
Pin 1 = UP 0
Pin 2 = Down 0
Pin 3 = Left 0
Pin 4 = Right 0
Pin 5 = Paddle 0 Y
Pin 6 = Fire 0 / Lightgun
Pin 7 = +5vdc VCC
Pin 8 = n/c
Pin 9 = GND
Pin 10 = Fire 2
Pin 11 = Up 2
Pin 12 = Down 2
Pin 13 = Left 2
Pin 14 = Right 2
Pin 15 = Paddle 0 X
Digital Signal Processing (DSP) edge connector
Pin 1 = U15 gnd
Pin 2 = SCK
Pin 3 = WS
Pin 4 = TxD
Pin 5 = RxD
Pin 6 = U15 GND
Pin A = VCC
Pin B = UART0
Pin C = UART1
Pin D = n/c
Pin E = n/c
Pin F = ???
Power Supply - 9vdc 1.2amp Tip Negative
